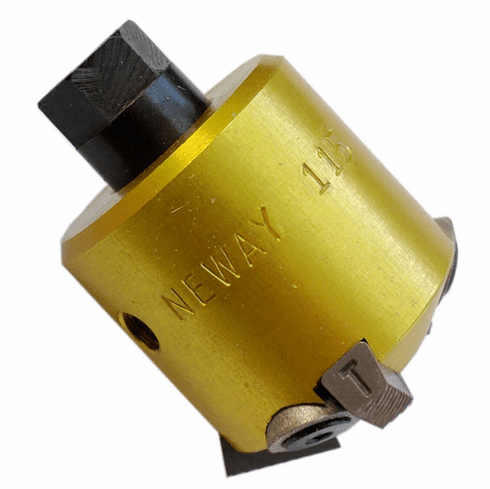

Neway Valve Seat Cutter - 1.00" - 31°
CU123
Neway Valve Seat Cutter - 1.00" - 31°
| Part Number | CU123 |
|---|---|
| Name | Neway Valve Seat Cutter - 1.00" -31° |
| Diameter | 25.4mm / 1.00" |
| Angle | 31° |
| Blade Count | 3 |
| Blade Type | TC253 |
| Pilot Type Required | 297" Top Size - 100 or 120 Series Pilots |
| Operating Range Minimum | 22.5mm / .886" |
| Operating Range Maximum | 28.0mm / 1.10" |
Neway 100 Series Small Diameter Cutter Bodies are designed to work with Neway .297" Top Size Valve Guide Pilots. These cutters are not compatible with the standard .375" Top Size Valve Guide Pilots. Neway Standard Diameter Cutter Bodies can be found by clicking here
All Small Diameter Cutter Bodies can be driven using the 3/8" T-Handle Wrench or the Easy-Turn Wrench with the 1/2" to 3/8" Adaptor.
Valve Seat Cutting with Neway
Valve seat reconditioning is simple, accurate, and clean with Neway’s carbide-bladed cutters. Neway’s user-friendly valve seat cutters allow you to precisely machine a multi-angle valve seat in a matter of minutes. Tungsten carbide leaves a perfectly flat, machined surface, ideal for optimal sealing efficiency and heat transfer. We stock a large inventory of genuine Neway Valve Seat Cutters, Valve Guide Pilots and accessories. Custom valve seat cutting kits are available on request, please contact us with any questions.
