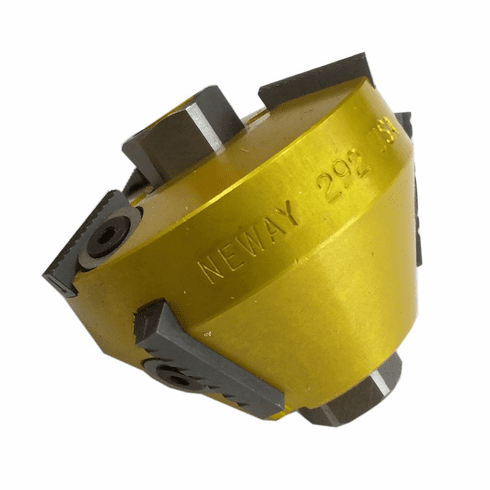

Neway Valve Seat Cutter 1-3/4" - 15° x 60°
| Part Number | CU292 |
|---|---|
| Name | Standard Series Valve Seat Cutter 44.5mm 15x60 deg. |
| Diameter | 44.5mm |
Side A
| Angle | 15° |
|---|---|
| Blade Count | 3 |
| Blade Part | TC251 |
| Operating Range Minimum | 41mm |
| Operating Range Maximum | 51mm |
| Blade Adjustment Minimum | 14.7mm |
| Blade Adjustment Maximum | 52.7mm |
Side B
| Angle | 60° |
|---|---|
| Blade Count | 3 |
| Blade Part | TC254 |
| Operating Range Minimum | 41mm |
| Operating Range Maximum | 54.5mm |
| Blade Adjustment Minimum | 21.1mm |
| Blade Adjustment Maximum | 54.6mm |
Valve Seat Cutting with Neway
Valve seat reconditioning is simple, accurate, and clean with Neway’s carbide-bladed cutters. Neway’s user-friendly valve seat cutters allow you to precisely machine a multi-angle valve seat in a matter of minutes. Tungsten carbide leaves a perfectly flat, machined surface, ideal for optimal sealing efficiency and heat transfer.
Standard Series Neway Cutter Bodies are designed to work with Neway .375" Top Size Valve Guide Pilots. These cutters are not compatible with the Small Series .297" Top Size Valve Guide Pilots. Neway Small Diameter Cutter Bodies can be found by clicking here. All Standard Series Cutter Bodies can be driven using the 1/2" T-Handle Wrench or the Easy-Turn Wrench.
Product Instructions:
Neway Cutter Instruction Manual (1.9 MB Requires Adobe Acrobat Reader)
