3-angle Valve Seat Cutting Kit .375" (9.53mm)
Precision Ground 3-Angle Seat Cutting System - .375 Pilots

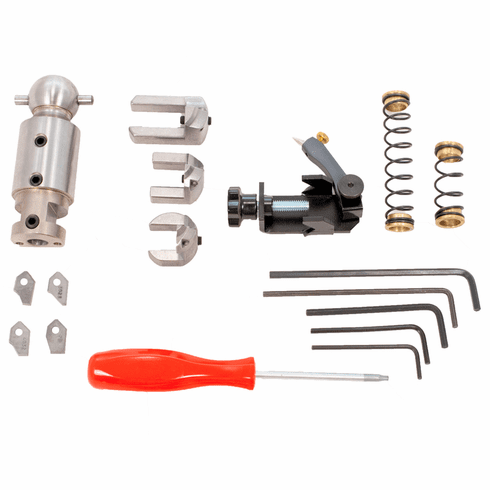

3-Angle Seat Cutting Kit Includes:
- SSBH375 Ball Head .375" (9.53mm)
- SS2000 Tip Holder .709" - 1.181" (18-30mm)
- SS2001 Tip Holder 1.02" - 1.653" (26-42mm)
- SS2002 Tip Holder 1.575" - 2.362" (40-60mm)
- (4) Carbide Blades
- S1 45° seat (.059") / 30° top (.071") / 60° throat
- S2 30° seat (.051") / 15° top (.039") / 45° throat
- S3 45° seat (.051") / 15° top (.039") / 60° top
- S4 70° single angle (for throating)
- SSTSF Tool Setting Fixture
- SBSCREW Cutter Blade Mounting Screw
- SSBWRENCH Blade Wrench
- SSAS Automotive Spring Set (2 pc.)
- SS1/8 1⁄8" Hex Key
- SS2.5 2.5mm Hex Key
- SS3/32 3⁄32" Hex Key
Important! Drive adapters are sold separately from the 3-Angle Kit. Choose from the following and order with kit:
- SSCM3 #3 Morse Taper Drive Adapter
- SSCM4 #4 Morse Taper Drive Adapter
- SS3/4SS Bridgeport & DCM Drive Adapter
No valve guide pilots are included. Use your existing seat grinding pilots with top size of .375", or upgrade to our precision solid carbide valve guide pilots for additional accuracy. Our tooling is compatible with Goodson, Kwik-Way, Neway, Newen, Peterson, Rottler, Serdi, Sunnen, T&S, Winona Van Norman, etc.
